Foundation Excavation in Vancouver, WA

Foundation excavation in Vancouver, WA is precision dirt work on ground that has changed considerably since the city grew up fast in the 1940s. Vancouver Excavation Co. digs footings, stem walls, crawl spaces, and basements for new homes, additions, shops, and light commercial buildings across Clark County. The plan gives the dimensions; our job is to reach bearing soil, hold square layout, and hand the hole to the concrete crew clean and ready.

What makes Clark County distinct is the mix of terrain and the age of what is already in the ground. Low areas in Fruit Valley and along the Columbia River floodplain can carry groundwater close to grade, while hillside lots near Orchards and Cascade Park often need stepped footing cuts and drainage on the uphill side. In the wartime developments of Bagley Downs and McLoughlin Heights, we regularly encounter disturbed fill, old utility runs, and remnants of previous foundations. We dig to bearing, manage water throughout, and leave a clean excavation ready for forms and steel.

Our Vancouver Foundation Excavation Services

Vancouver Excavation Co. excavates foundation work from the drawings, with the dimensions, bearing, and drainage details kept in view. We dig:

• Footing trenches — dug square, to width, and to depth so the footing sits on solid, undisturbed bearing soil.
• Basement excavation — full-depth digs with stable walls and room for the crew to form and pour.
• Crawl space excavation — dug to the right depth and grade, with drainage in mind.
• Stem wall and grade beam digs — precise trenching for the wall type on your plans.
• Over-excavation and structural fill — digging out soft or wet soil and replacing it with compacted rock for solid bearing.
• Footing and foundation drains — installed as we go so water is managed before the concrete's in.

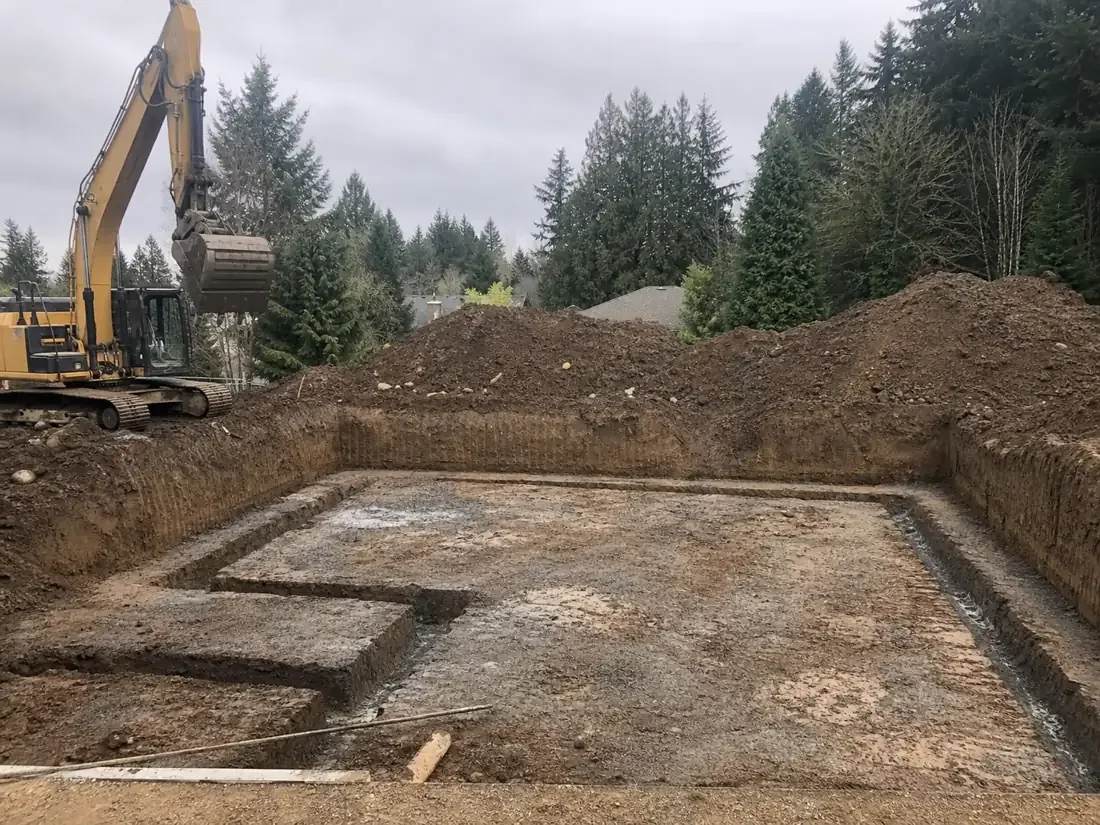

Squared, To-Depth, and Ready for Concrete

Before any excavation begins, Washington State law under RCW 19.122.030 requires marking the dig boundary with white lining or white pin flags and notifying all utility operators through the 811 locator service at least two full business days before work starts. Once utilities are marked and cleared, precision takes over. We lay out from the foundation plan, cut footings to the required width and depth, and keep the excavation floor on undisturbed bearing soil rather than loose fill. Soft spots are over-excavated and rebuilt with compacted structural rock where the plans require it, and the finished hole lets the concrete crew set forms without re-digging or re-squaring.

Keeping water out of the hole

Vancouver averages about 42 inches of rain a year, concentrated in fall, winter, and spring, with a genuine dry window from mid-June through September. We prefer to schedule foundation digs inside that dry season when the build timeline allows. For work that falls outside it, we dig close to the inspection and pour, install footing drains or sumps where water is already moving toward the trench, and cover exposed subgrade so an open hole does not fill between the dig and the pour.

Foundations in a Growing Vancouver

Clark County foundation work spans a wide range of site conditions. The 1940s wartime neighborhoods — Fruit Valley, Bagley Downs, McLoughlin Heights — often mean tight lots, previous additions, buried utility lines, and fill placed during earlier construction phases. Orchards and Cascade Park bring hillside geometry: stepped footings, retaining cuts on the high side, and drainage paths that cross the property. Low-lying lots near Vancouver Lake and the Columbia River corridor need water management built into the excavation plan before the first pass with the machine. Each setting changes what the dig requires, and we adjust the approach to match the ground.

The common Clark County challenge is managing water from multiple directions. Lots near Burnt Bridge Creek and the Columbia River floodplain can have groundwater close to grade that moves into open footings quickly after fall rain. Uphill lots along the Orchards and Cascade Park ridgelines can collect runoff from above when the excavation sits exposed between the dig and the pour. We time the work tightly, install footing drains and sumps where the site demands them, and dig below disturbed fill to solid bearing so the concrete crew forms and pours on stable ground.

How Much Does Foundation Excavation Cost in Vancouver, WA?

Most homeowners here land between $2,000 and $6,500 for a foundation dig. Which end depends mostly on how deep you are going and what comes out of the hole. Shallow footings and crawl spaces sit low; a full basement sits high, because the spoils have to go somewhere. Machine and operator time is about $110 to $190 per hour, hauling spoils off runs $60 to $120 per cubic yard, and if we have to over-excavate and rebuild the bearing area, structural rock is around $35 to $60 per ton. Clark County ranges are in the table below.

Permits, Inspections, and Coordination

Foundation work in Clark County follows the Clark County building permit, and the footing inspection is typically required after excavation but before the concrete pour. Washington State also requires utility notification under RCW 19.122.030 before any excavation begins — the excavator marks the boundary with white flags and calls 811 at least two business days ahead. Vancouver Excavation Co. works from the approved plan, coordinates timing with your general contractor and concrete crew, and manages erosion control required by the county so the pour is not waiting on the hole.

What Working With Us Looks Like

Frequently Asked Questions

Related Excavation Services in Vancouver

Footing excavation sits between site prep and backfill, and both ends matter. Vancouver Excavation Co. covers the sequence from first cut to final grade around the finished wall.
